Fuji’s Reveal 3.0. takes you away from the crowds, far out of cell phone reach, and right to the fun. This all-mountain rig features 140mm of efficient, 4-bar suspension to flatten hills, increase your descending speed and boost your airtime. Plus, Fuji’s A6-SL aluminum frame is light, stiff and ready for the rough stuff. Suspension-wise it’s all RockShox, with their 140mm-travel Sektor fork in the front and an Ario shock out back. Component highlights include a Shimano Deore/SLX drivetrain, super-grippy Continental tires, Oval’s competition-grade controls and Tektro hydrauilc discs with huge rotors for supreme stopping power.

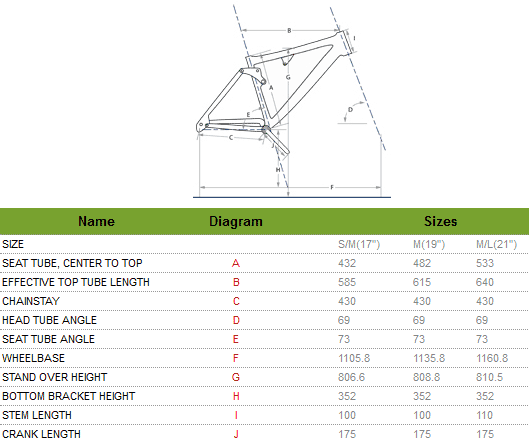

View the geometry chart.

Choose your preferred pedals (sold separately) from our wide selection.

Frame	Fuji A6-SL aluminum w/tapered head tube
Rear Cogs	Shimano, 9-speed: 11-34
Saddle	Oval M200
Brakes	Tektro Auriga Pro hydraulic disc, 8/7-inch front/rear rotors
Brake Levers	Tektro Auriga Pro
Stem	Oval M200
Tape/Grips	Fuji Dual-Density Kraton
Handlebars	Oval M200 riser
Shifters	Shimano Deore
Rear Derailleur	Shimano SLX
Fork	RockShox Sektor R U-Turn, 140mm-travel w/15mm through-axle
Front Derailleur	Shimano Deore
Chainrings	42/32/24
Crankset	Shimano Deore
Tires	Continental Mountain King, 26 x 2.2
Hubs	Fuji mountain disc
Rims/Wheels	Alex
Rear Shock	RockShox Ario RL, 140mm-travel
Seatpost	Oval M200
