SRAM Guide RE Disc Brake

Guide RE is SRAM’s optimized braking solution for today’s exciting category of E-MTBs, capable of handling the higher average speeds, more intense use and increased mass due to the presence of the motor and battery. It combines SRAM’s proven Guide R lever assembly with a powerful 4-piston caliper derived from the gravity-focused Code brakes. The Guide RE provides real, usable on-trail control—optimal power and modulation mean speed can be controlled in all terrain and in all situations, both uphill and downhill.

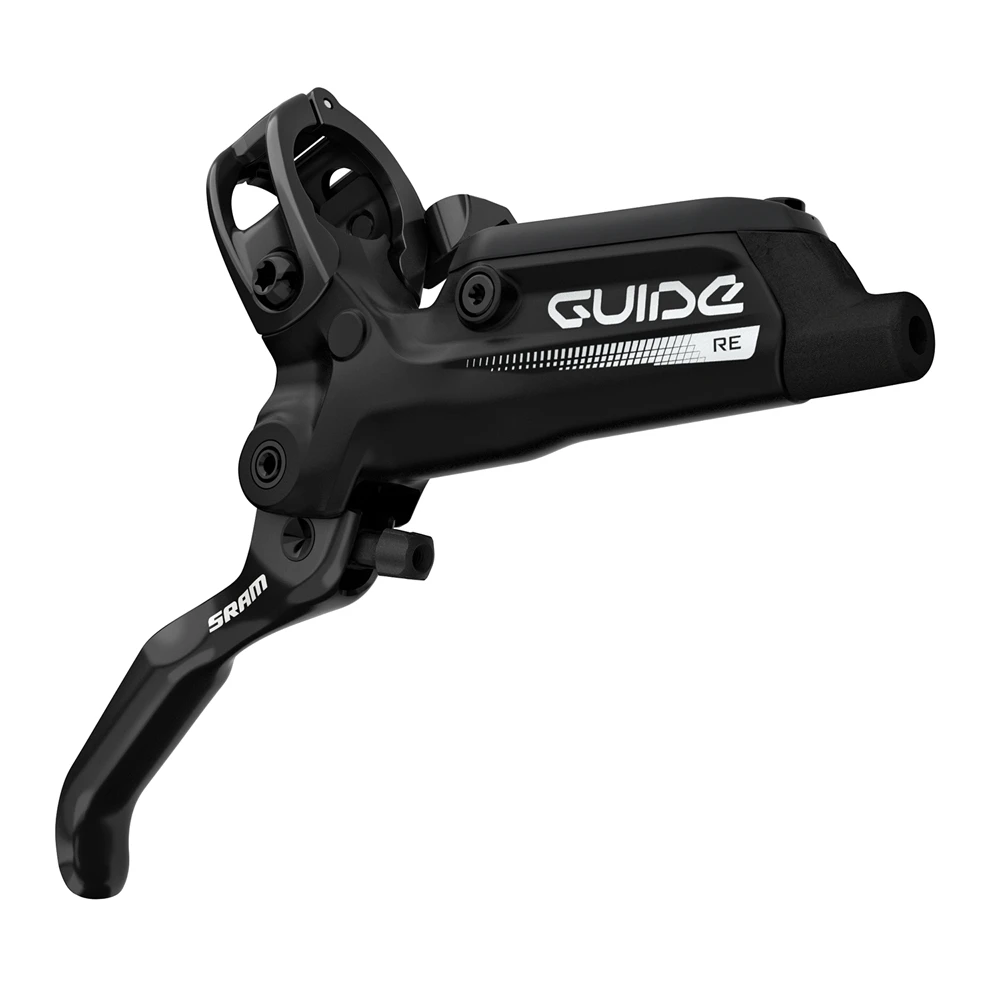

– Guide R lever assembly with proven Guide technologies

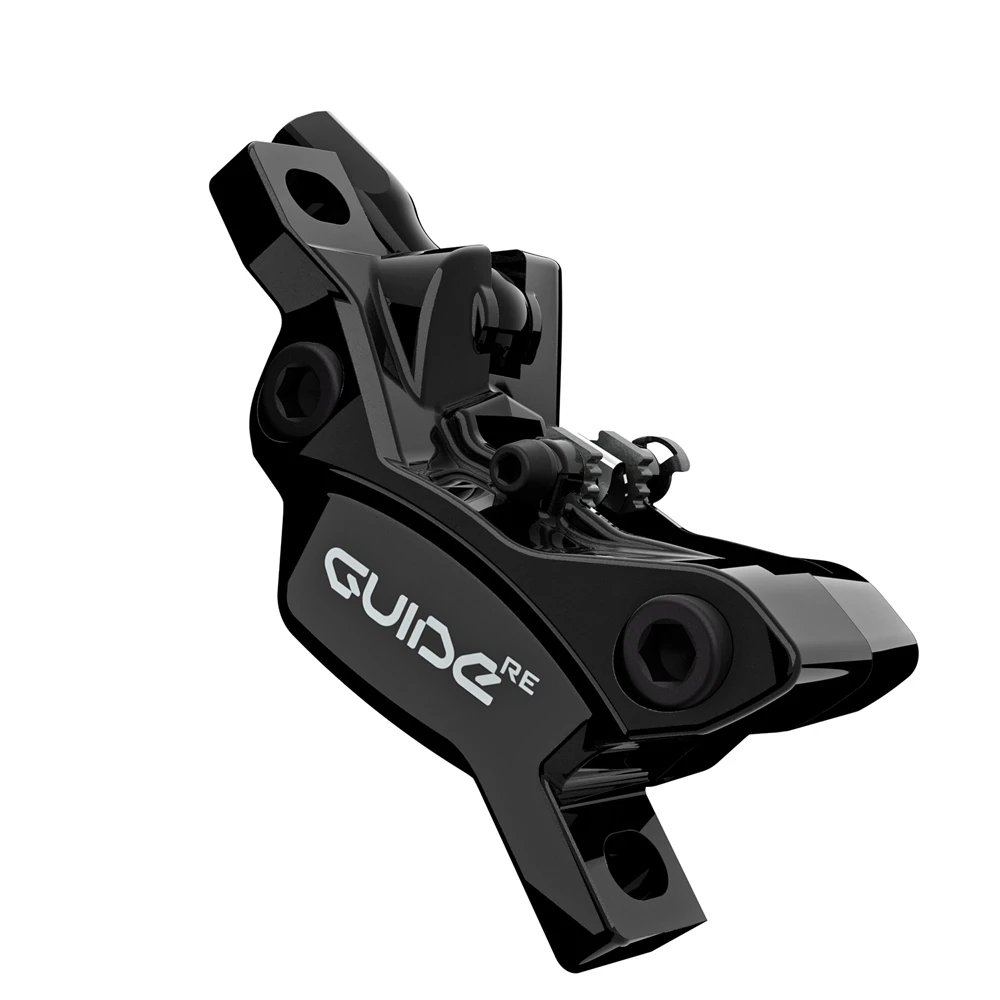

– Powerful 4 piston caliper derived from the Code gravity specific brakes
– Sintered pads for better pad life in intensive use
– MatchMaker X compatible
– Ambidextrous lever mount
– Tool-free reach adjust
– Weight: 415 grams (based on direct mount, 800 hose, 160mm CL Rotor)
– Lever Material: Aluminum
– Caliper Design: 4 piston caliper derived from the Code gravity specific brakes
– Finish: Gloss black
– Pad: Steel-backed metal sintered
– Fluid: DOT 5.1
– Mount: Ambidextrous
– Adjustment: Tool-free Reach Adjust, Banjo Adjust
– Pivot: Bushing
